Integrating With Windcave (Payment Express) & Setting Up Your Poynt Terminals

Windcave formerly known as Payment Express

Follow these directions if you are using the Windcave integration with the Poynt terminals. If you are using the iPP350 or the Move5000 terminals, click here.

How to setup my Windcave (Payment Express) account?

To get started on setting up your Windcave (Payment Express) account, contact our rep Eric Mayling at emayling@cardconnectpartners.com.

Eric can also assist with ordering your Poynt payment terminals.


How to integrate Windcave (Payment Express) with Commerce7?

You will need your API username and Password to complete the integration with Windcave (Payment Express).

If you don’t have your API username and password, you can contact Payment Express to get these details. You need to request a PxPost username and password, ensure you specify PXPOST to get the correct credentials.

PxPost login credentials are the ones that don't end in "_PL"

Navigate to Settings > General.

Commerce7-Settings-2

Then, scroll to the bottom and select the Edit icon beside the Payment section .
Commerce7-Settings (2)-1

Now, under Gateway use the drop down menu to select Payment Express and add your API username and password. Click Save

Commerce7-Settings (4)-1



How to configure & connect Poynt terminals?

Follow the directions above on how to navigate and edit your payment gateway.

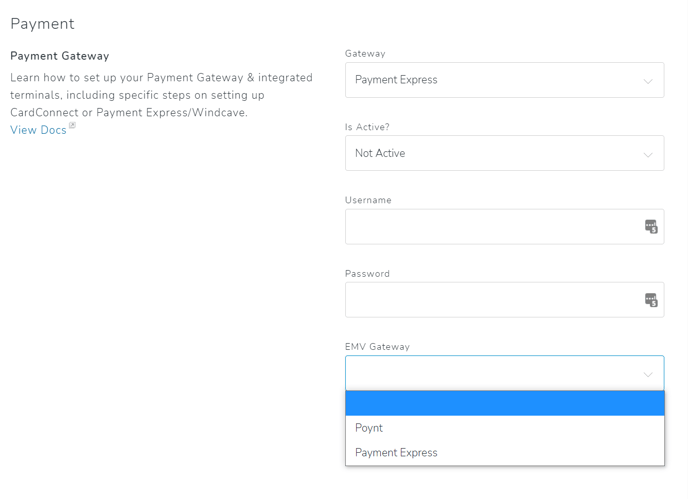

Once you have the payment gateway options, under EMV Gateway, use the drop down menu to select Poynt or Payment Express.

Once you have completed make sure to select Save
Screenshot-15-


Next, select Connect Poynt EMV Terminal. This will prompt you to login to your Poynt account.
Commerce7-Settings (6)
Next, Sign in to your Poynt Account.
 After signing in to your Poynt account, you will be redirected back to the admin panel settings and you are now connected.


Now, you will want to connect your urn:tid /Device Key to your POS Profile.

If you don't know your urn:tid/device key(s), please contact poynt@cardconnectpartners.com.

Navigate to Settings > POS Profile in Commerce7.

Commerce7-Settings (7)-1

Then select on the POS Profile(s) you want your device added.

  • under Device Key field add your urn:tid /device key
  • then add a Title for your device.

You can have multiple urn:tid /device keys for a profile depending on your tasting room setup (i.e. multiple ipads with multiple Poynt devices).

If using multiple devices for one profile, we highly recommend choosing a name for each device that is easily identifiable. Example: Using a colour as a name and then physically putting a piece of coloured tape on the terminal to match the device name will help make identifying each device easier.

Select Add Device for each addition device, add the Device Key and Title for each device.

Once all the information is added make sure to select Save

Commerce7-POS-Profiles (1)-1
